Why mixing HSFG bolt assembly components creates hidden risk
HSFG connections rely on controlled preload.
That preload is not generated by the bolt alone.
It depends on:
When bolt, nut, and washer come from different brands, the friction factors change.
The torque applied remains the same.
The preload achieved does not.
This is why HSFG bolt assembly mixed brands is a serious technical problem.
How HSFG preload actually works
HSFG (High Strength Friction Grip) joints depend on:
- Correct bolt grade
- Calibrated torque or tensioning method
- Controlled friction coefficient
- Matched component behavior
EN 14399 defines HSFG as an assembly, not separate parts.
Mixing parts breaks the system.

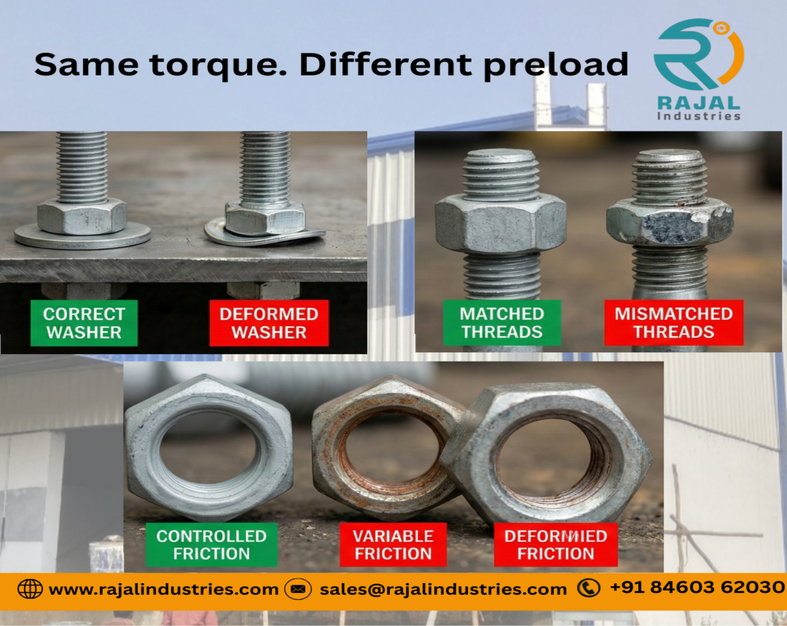

What goes wrong when brands are mixed
- 1. Friction mismatch
Different coatings and finishes produce different friction values.
This changes preload.
- 2. Washer behavior changes
K-class washers are hardened and surface treated.
If substituted with generic washers, preload control is lost.
- 3. Nut thread friction varies
Different nut coatings change turning resistance.
Torque no longer equals tension.
- 4. Calibration becomes invalid
Calibration tests are done on a specific assembly.
Mixed parts invalidate calibration.
Where this causes failures
- Slip-critical connections
- Bridges and cranes
- Heavy PEB frames
- Wind and seismic zones
How to ensure correct HSFG bolt assembly
Procure bolt, nut, washer as one set
Demand EN 14399 assembly certification
Avoid mixing leftover components
Keep assemblies sealed until use
Calibrate tightening with actual assembly
Typical HSFG bolt assembly
- Bolt: Grade 8.8 / 10.9
- Nut: matched strength
- Washer: K-class hardened washer
- Coating: controlled friction
What happens if this is ignored
- Preload variation
- Joint slip
- Fatigue damage
- Structural movement
- Audit failure
- Warranty and liability risk
Final thought
An HSFG connection is not a bolt.
It is a system.
And systems only work when all parts are designed to work together.
