Anchor Pull-Out Failures in BESS Platforms? This Is What Is Failing on Your Site
BESS platforms support heavy battery containers, inverter skids, and transformer bases. These structures are fixed to concrete using M12 and M16 anchors that must resist vibration, wind loads, and thermal expansion.
Across energy storage yards, engineers are now finding pulled-out anchors, cracked concrete, tilted skids, and loose platforms. The system still runs, but the foundation is slowly failing.
This is not a concrete problem.
It is an anchor selection failure.
When the wrong anchor type is used, the concrete cannot hold the load. Once movement begins, cracks spread and the anchor pulls out.
How This Problem Appears on Site
Anchors lifting from concrete
Cracks around base plates
Platform movement
Misaligned skids
Rust on anchors
7 Causes of Anchor Pull-Out
1) Wrong Anchor Type
Sleeve anchors used for heavy loads.
2) Shallow Embedment
Insufficient depth.
3) Poor Hole Cleaning
Dust prevents grip.
4) Low Grade Steel
Anchors stretch.

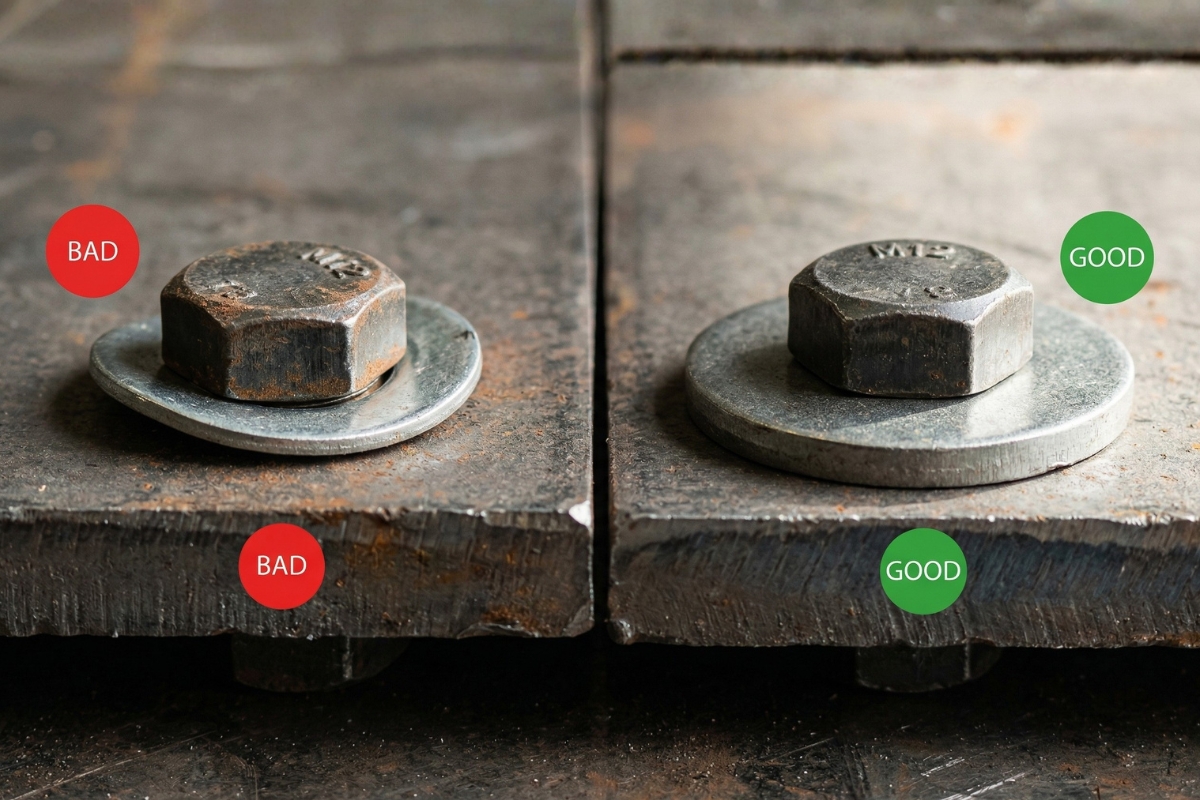

5) No Structural Washer
Uneven load distribution.
6) Vibration
Loosens anchors.
7) Corrosion
Reduces holding strength.
Technical Failures Seen in the Field
| Issue | Result |
| Pulled anchors | Platform tilt |
| Cracked concrete | Structural damage |
| Loose skids | Safety risk |
| Rusted anchors | Reduced load |
Correct Anchor Setup for BESS Platforms

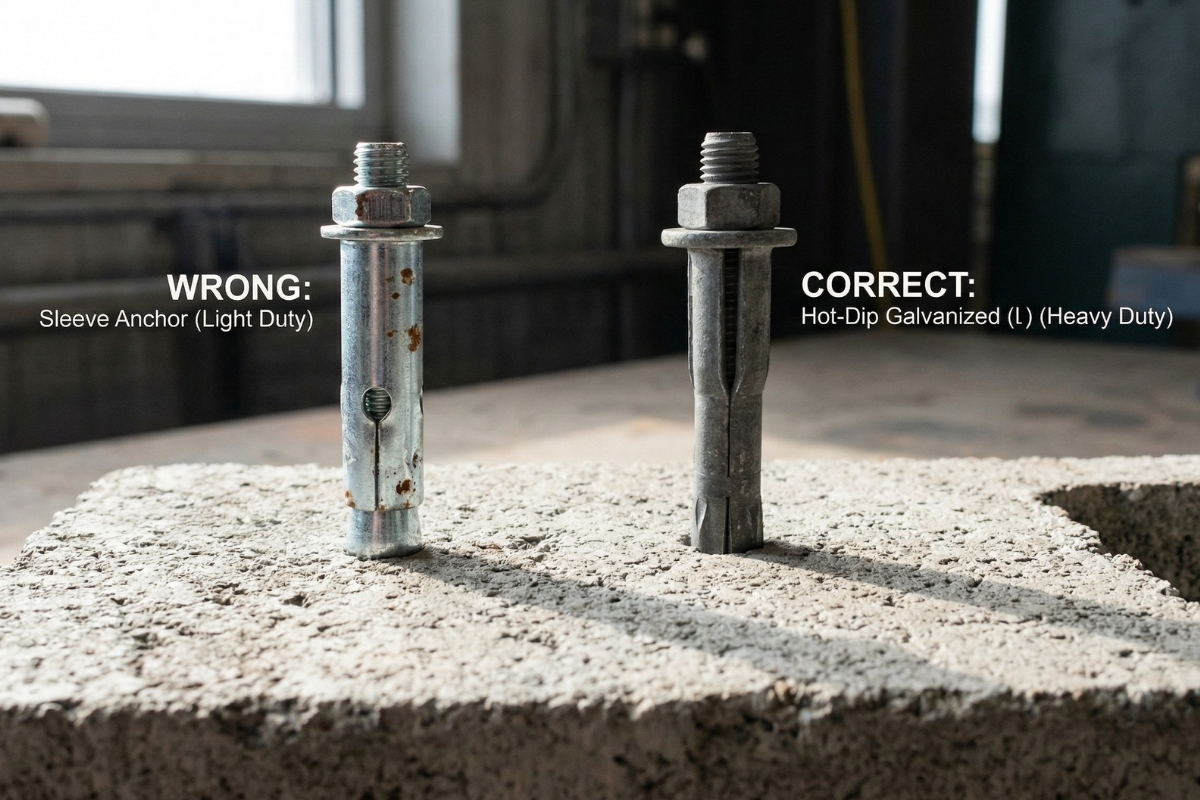

Size: M12
Type: Wedge anchors or HDG anchors
Hardware: Structural washers, lock nuts
How to Prevent Anchor Failure
Use wedge anchors for heavy loads
Choose HDG coating
Ensure proper embedment
Clean holes
Add structural washers
Battery anchor failure is a major structural risk in BESS platforms.
Using M12 wedge anchors, HDG anchors, structural washers, and lock nuts ensures safe load transfer and prevents pull-out.
If anchors are lifting, your platform is already unsafe.
Engineering Truth
The foundation fails before the system does.
